packerlschupfer
ccd6086787
* CLI: evaluate compatible_printers_condition in the compat checks
Slicing from the CLI with --load-settings exits with
CLI_PROCESS_NOT_COMPATIBLE (-17), "The selected printer is not compatible
with the process preset in the 3mf.", for process/printer pairs the GUI
accepts. Reproducible with stock, unmodified Prusa system profiles:
orca-slicer --datadir <datadir> \
--load-settings "<datadir>/system/Prusa/process/0.20mm SPEED @CORE One HF 0.4.json;<datadir>/system/Prusa/machine/Prusa CORE One HF 0.4 nozzle.json" \
--load-filaments "<datadir>/system/Prusa/filament/Prusament PETG @CORE One HF 0.4.json" \
--slice 0 --outputdir /tmp/out model.stl
The four compat checks in CLI::run did a literal name match against the
`compatible_printers` list only:
for (index ...) if (new_print_compatible_printers[index] == new_printer_system_name)
process_compatible = true;
Process profiles that declare compatibility through
`compatible_printers_condition` and leave `compatible_printers` empty are
therefore always reported incompatible -- the condition is never consulted.
For 0.20mm SPEED @CORE One HF 0.4 that condition is:
printer_notes=~/.*PRINTER_MODEL_COREONE[^_a-zA-Z0-9].*/ and
nozzle_diameter[0]==0.4 and printer_notes=~/.*HF_NOZZLE.*/
The GUI does not have this bug: is_compatible_with_printer() in Preset.cpp
treats an empty list as "no explicit constraint" and evaluates the
condition in that case.
Fix: replace the four loops with a check_compat lambda that calls
is_compatible_with_printer() -- the same helper the GUI uses -- wrapping
the already-loaded DynamicPrintConfigs in lightweight Preset /
PresetWithVendorProfile shells. The 3MF-embedded process/printer full
configs are kept in current_process_full_config /
current_printer_full_config so the condition can be evaluated for the
reprocess paths too; those fall back to the previous literal match when
the full config was not preserved.
Behaviour is unchanged where an explicit compatible_printers list exists:
is_compatible_with_printer() performs the same name match, and returns
true when both list and condition are empty, matching the existing
"old 3mf, no compatible printers, set to compatible" path.
Split out of #13731 (section 1) as a standalone, single-purpose change.
Orthogonal to the inherits-chain resolution work in #14718 / #15302 /
#15438; those decide which values a preset resolves to, this decides
whether the resulting pair is considered compatible.
* CLI: translate the 3MF's renamed compatibility keys before the compat check
The 3MF fallback fed the project config to is_compatible_with_printer() as-is,
but a project config does not carry compatible_printers or
compatible_printers_condition. PresetBundle::construct_full_config() erases both
and re-emits them as print_compatible_printers and
compatible_machine_expression_group; they are renamed back only on the
PresetBundle load path, which the CLI does not take. The check therefore saw no
list and no condition, read that as 'no constraint' and accepted every printer.
That is not just a wrong accept. An early true skips the !process_compatible
block that sets machine_switch, so the new printer is never appended to
print_compatible_printers and the exported 3MF stays marked compatible only with
the printer it came from -- which is exactly what that block exists to prevent.
Translate the two keys back before the check. Index 0 of the expression group is
the print preset; the group is filled print, filaments, printer.
Also note in the comment that profiles/BBL/{process,machine}_full/ are gitignored
and generated by nothing in-tree, so current_*_full_config is always empty and
this fallback is the only live path -- not the rare non-BBL case the original
comment implied.
Reported with measurements by HanifKoh in review of #15449.
Preset: add a config-level is_compatible_with_printer() overload
The CLI holds resolved DynamicPrintConfigs, not Presets, so it wrapped them in
throwaway Preset shells at the call site. Moving that into Preset.cpp puts the
compatibility policy -- including the documented fail-open on a malformed
compatible_printers_condition -- in one place for the GUI and the CLI, rather
than leaving a second copy of the plumbing in OrcaSlicer.cpp to drift.
Purely additive: neither existing overload changes, so no GUI behaviour moves.
Requested by HanifKoh in review of #15449.
(cherry picked from commit 14ca1972ef4d3c7d90935d159423013a40a6bd70)
* CLI: never overwrite a real compat key with an empty renamed one
7e7f0e3 translated compatible_machine_expression_group[0] into
compatible_printers_condition whenever the group vector was non-empty. A project
the CLI exported itself carries the real compatible_printers_condition AND an
all-empty group, ["", "", ""], so the valid condition was overwritten with
"", the check saw no constraint, and every printer was accepted.
That fixed GUI-shaped projects and broke CLI-shaped ones. Bisected across six
builds re-slicing one CLI-exported CORE One project with an MK4S: every build
before 7e7f0e3 gives 'compatible 0' and takes the machine-switch path; with it,
'compatible 1' and no switch.
The raw keys now win whenever they carry something; the renamed ones are only a
fallback, and an empty value is never written over a real one. Same for the list:
print_compatible_printers is used only when compatible_printers is absent or
empty and it itself is not.
Found by a peer session re-testing the installed build.
OrcaSlicer: an open source Next-Gen Slicing Software for Precision 3D Prints.
Optimize your prints with ultra-fast slicing, intelligent support generation, and seamless printer compatibility—engineered for perfection.
Official links and community
Official Website:
Github Repository:
Follow us:
Join our Discord community:
|
⚠️ CAUTION: Several clickbait and malicious websites, such as orca-slicer[.]com and orcaslicer[.]net, are pretending to be the official OrcaSlicer site. These sites may redirect you to dangerous downloads or contain misleading information. Our only official website is www.orcaslicer.com. If you come across any of these in search results, please report them as unsafe or phishing to help keep the community secure with: - Google Safe Browsing - Microsoft Security Intelligence - IPThreat |
Main features
- Advanced Calibration Tools
Comprehensive suite: temperature towers, flow rate, retraction & more for optimal performance. - Precise Wall and Seam Control
Adjust outer wall spacing and apply scarf seams to enhance print accuracy. - Sandwich Mode and Polyholes Support
Use varied infill patterns and accurate hole shapes for improved clarity. - Overhang and Support Optimization
Modify geometry for printable overhangs with precise support placement. - Granular Controls and Customization
Fine-tune print speed, layer height, pressure, and temperature with precision. - Network Printer Support
Seamless integration with Klipper, PrusaLink, and OctoPrint for remote control. - Mouse Ear Brims & Adaptive Bed Mesh
Automatic brims and adaptive mesh calibration ensure consistent adhesion. - User-Friendly Interface
Intuitive drag-and-drop design with pre-made profiles for popular printers. - Open-Source & Community Driven
Regular updates fueled by continuous community contributions. - Wide Printer Compatibility
Supports a broad range of printers: Bambu Lab, Prusa, Creality, Voron, and more. - Additional features can be found in the change notes.
Wiki
The wiki aims to provide a detailed explanation of the slicer settings, including how to maximize their use and how to calibrate and set up your printer.
Download
Stable Release
📥 Download the Latest Stable Release
Visit our GitHub Releases page for the latest stable version of OrcaSlicer, recommended for most users.
Nightly Builds
🌙 Download the Latest Nightly Build
Explore the latest developments in OrcaSlicer with our nightly builds. Feedback on these versions is highly appreciated.
Belt Printer Builds
The nightly release ships two parallel builds: the standard build and a belt-printer build. Both are attached to the same release — tell them apart by the filename suffix:
- Standard — no suffix (e.g.
OrcaSlicer_Windows_Installer_x64_nightly.exe) - Belt —
_beltsuffix (e.g.OrcaSlicer_Windows_Installer_x64_nightly_belt.exe)
The _belt builds add experimental support for belt / conveyor (infinite-Z) printers, where the model is sliced against a tilted belt surface instead of a flat horizontal bed. They include ready-to-use belt printer profiles, the full belt slicing pipeline (mesh rotation and G-code transforms), belt-aware support generation, and a tilted-bed preview.
⚠️ Belt printer support is under active development and is not yet merged into
main— it currently ships only in these parallel_beltbuilds, produced from thebelt-printerbranch. See tracking PR #14394 and the original documentation in #12998.
How to install
Windows
Download the Windows Installer exe for your preferred version from the releases page. Both x64 and arm64 installers are published — pick the one matching your CPU.
-
For convenience there is also a portable build available.
Troubleshooting
- If you have troubles to run the build, you might need to install following runtimes:
- MicrosoftEdgeWebView2RuntimeInstallerX64
- vcredist2019_x64
- Alternative Download Link Hosted by Microsoft
- This file may already be available on your computer if you've installed visual studio. Check the following location:
%VCINSTALLDIR%Redist\MSVC\v142
Microsoft Store
Install from the Microsoft Store when you prefer a Store-signed package (helps on Windows 11 Smart App Control).
Windows Package Manager
winget install --id=SoftFever.OrcaSlicer -e
Mac
-
Download the universal DMG, which runs on both Apple Silicon and Intel Macs.
-
Drag OrcaSlicer.app to Application folder.
-
If you want to run a build from a PR, you also need to follow the instructions below:

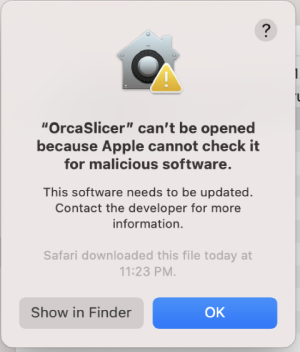

Quarantine
-
Option 1 (You only need to do this once. After that the app can be opened normally.):
- Step 1: Hold cmd and right click the app, from the context menu choose Open.
- Step 2: A warning window will pop up, click Open
-
Option 2: Execute this command in terminal:
xattr -dr com.apple.quarantine /Applications/OrcaSlicer.app -
Option 3:
- Step 1: open the app, a warning window will pop up
- Step 2: in
System Settings->Privacy & Security, clickOpen Anyway:
- Step 1: open the app, a warning window will pop up
-
Homebrew Cask
brew install --cask orcaslicer
The Homebrew cask installs the official macOS DMG from GitHub Releases.
Linux
Flathub (Recommended)
OrcaSlicer is available through FlatHub:
Install from the command line:
flatpak install flathub com.orcaslicer.OrcaSlicer
flatpak run com.orcaslicer.OrcaSlicer
It can also be installed through graphical software managers (KDE Discover, GNOME Software, etc.) when Flathub is enabled. Search for OrcaSlicer in your software center.
AppImage
AppImages are published for both x86_64 and aarch64 (ARM64). Pick the file matching your CPU — the ARM64 build has aarch64 in its name (e.g. OrcaSlicer_Linux_AppImage_Ubuntu2404_aarch64_*.AppImage).
-
Download App image from the releases page.
-
Double click the downloaded file to run it.
-
If you run into trouble executing it, try this command in the terminal:
chmod +x /path_to_appimage/OrcaSlicer_Linux.AppImage
How to Compile
All updated build instructions for Windows, macOS, and Linux are now available on the official OrcaSlicer Wiki - How to build page.
Please refer to the wiki to ensure you're following the latest and most accurate steps for your platform.
Klipper Note
If you're running Klipper, it's recommended to add the following configuration to your printer.cfg file.
# Enable object exclusion
[exclude_object]
# Enable arcs support
[gcode_arcs]
resolution: 0.1
Supports
OrcaSlicer is an open-source project, and we're deeply grateful to all our sponsors and backers.
Their generous support helps fund filaments and other essential 3D printing materials for the project.
Thank you! :)
Sponsors
|
|
Backers:
Ko-fi supporters ☕: Backers list
Support the project
Some Background
Open-source slicing has always been built on a tradition of collaboration and attribution. Slic3r, created by Alessandro Ranellucci and the RepRap community, laid the foundation. PrusaSlicer by Prusa Research built on Slic3r and acknowledged that heritage. Bambu Studio in turn forked from PrusaSlicer, and SuperSlicer by @supermerill extended PrusaSlicer with community-driven enhancements. Each project carried the work of its predecessors forward, crediting those who came before.
OrcaSlicer began in that same spirit, drawing from BambuStudio, PrusaSlicer, and ideas inspired by CuraSlicer and SuperSlicer. But it has since grown far beyond its origins. Through relentless innovation — introducing advanced calibration tools, precise wall and seam control, tree supports, adaptive slicing, and hundreds of other features — OrcaSlicer has become the most widely used and actively developed open-source slicer in the 3D printing community. Many of its innovations have been adopted by other slicers, making it a driving force for the entire industry.
The OrcaSlicer logo was designed by community member Justin Levine.
License
- OrcaSlicer is licensed under the GNU Affero General Public License, version 3.
- The GNU Affero General Public License, version 3 ensures that if you use any part of this software in any way (even behind a web server), your software must be released under the same license.
- OrcaSlicer includes a pressure advance calibration pattern test adapted from Andrew Ellis' generator, which is licensed under GNU General Public License, version 3. Ellis' generator is itself adapted from a generator developed by Sineos for Marlin, which is licensed under GNU General Public License, version 3.
- The Bambu networking plugin is based on non-free libraries from BambuLab. It is optional to the OrcaSlicer and provides extended functionalities for Bambulab printer users.
