# Description Each plate keeps a registry of the instances it holds (`PartPlate::obj_to_instance_set`). The plate's filament list (`get_extruders`), its wipe tower preview and position clamp, the object list grouping and the saved project's per-plate instance list all read it. Two paths left it stale: * `Plater::increase_instances` (the `+` key / toolbar) adds the copy to the model but never registers it with any plate. * `GLCanvas3D::do_move` (drag release and arrow keys) ended with `notify_instance_update(-1, 0)`, so only instance 0 of each selected object was re-registered. Rotate, scale and mirror already notify every instance. So a copy created with `+` and dragged onto another plate stayed unknown to that plate: the project saved afterwards listed it on no plate, and a multi-filament copy moved onto a single-filament plate drew no wipe tower there and never got its tower position clamped. The Print side selects instances by geometry, so the plate still sliced, which is why this went unnoticed. This PR * registers new copies with their plate at creation; * has `do_move` notify exactly the instances it moved (every instance of the object when a part was moved in Volume mode), rather than instance 0 or all instances - notifying an instance that stayed put invalidates its plate's slice result, so `(-1, -1)` as used by rotate would have un-sliced every plate holding a sibling copy; * drops the registry entry again when `decrease_instances` removes a copy. A second commit finishes the switch #15532 started with `contain_any_instance_totally()`: `get_extruders_without_support()`, `check_single_extruder_mixed_filament_risk()` and `check_compatible_of_nozzle_and_filament()` still tested instance 0 only, so an object whose copy - not its original - sits on the plate was skipped by all three. No new options, no format change. The `is_new` flag is deliberately not passed for the copies: a copy landing on a spiral-vase plate gets the same "apply spiral mode settings?" prompt a dragged instance gets, instead of a silent rewrite of the object's settings. # Screenshots/Recordings/Graphs Before: <img width="1920" height="1080" alt="05-moved" src="https://github.com/user-attachments/assets/3cf9f5a9-1a4e-41e8-8c57-578f849d8c29" /> After: <img width="1920" height="1080" alt="05-moved" src="https://github.com/user-attachments/assets/1b801a7e-b7cd-4ffb-bd1d-b701f90dade6" /> ## Tests Re-run after the rebase, both binaries driven through the same headless harness (Xvfb 1920x1080, llvmpipe) on the same fixture: `cubeA` (filament 1) alone on plate 1, `cubeB` (a two-part object, filaments 2 and 1) alone on plate 2, so plate 1 shows no wipe tower at load. Select the plate-2 object, press `+`, walk the copy onto plate 1 with 36 x Left (10 mm per press, one `do_move` each), save, slice plate 1. Before is main `8af92214d0` - i.e. with #15532's `contain_any_instance_totally()` already in place, so the only difference is this PR. * **Before:** the saved `model_settings.config` lists plate 1 with `cubeA` only and plate 2 with `cubeB` instance 0. The copy (instance 1) is listed **on no plate at all**, and plate 1 draws no wipe tower even though a two-filament object is sitting on it. * **After:** plate 1 lists `cubeA` **and** `cubeB` instance 1; plate 2 still lists instance 0. The plate-1 tower preview appears, and slicing plate 1 succeeds with the tower actually generated - the filament panel reports 1.10 m / 0.48 m in its Tower column over 51 filament changes, and the G-code carries `EXCLUDE_OBJECT_END NAME=cubeB.stl_id_1_copy_0`. Same camera and fixture on both runs, so the screenshots above are directly comparable.
OrcaSlicer: an open source Next-Gen Slicing Software for Precision 3D Prints.
Optimize your prints with ultra-fast slicing, intelligent support generation, and seamless printer compatibility—engineered for perfection.
Official links and community
Official Website:
Github Repository:
Follow us:
Join our Discord community:
|
⚠️ CAUTION: Several clickbait and malicious websites, such as orca-slicer[.]com and orcaslicer[.]net, are pretending to be the official OrcaSlicer site. These sites may redirect you to dangerous downloads or contain misleading information. Our only official website is www.orcaslicer.com. If you come across any of these in search results, please report them as unsafe or phishing to help keep the community secure with: - Google Safe Browsing - Microsoft Security Intelligence - IPThreat |
Main features
- Advanced Calibration Tools
Comprehensive suite: temperature towers, flow rate, retraction & more for optimal performance. - Precise Wall and Seam Control
Adjust outer wall spacing and apply scarf seams to enhance print accuracy. - Sandwich Mode and Polyholes Support
Use varied infill patterns and accurate hole shapes for improved clarity. - Overhang and Support Optimization
Modify geometry for printable overhangs with precise support placement. - Granular Controls and Customization
Fine-tune print speed, layer height, pressure, and temperature with precision. - Network Printer Support
Seamless integration with Klipper, PrusaLink, and OctoPrint for remote control. - Mouse Ear Brims & Adaptive Bed Mesh
Automatic brims and adaptive mesh calibration ensure consistent adhesion. - User-Friendly Interface
Intuitive drag-and-drop design with pre-made profiles for popular printers. - Open-Source & Community Driven
Regular updates fueled by continuous community contributions. - Wide Printer Compatibility
Supports a broad range of printers: Bambu Lab, Prusa, Creality, Voron, and more. - Additional features can be found in the change notes.
Wiki
The wiki aims to provide a detailed explanation of the slicer settings, including how to maximize their use and how to calibrate and set up your printer.
Download
Stable Release
📥 Download the Latest Stable Release
Visit our GitHub Releases page for the latest stable version of OrcaSlicer, recommended for most users.
Nightly Builds
🌙 Download the Latest Nightly Build
Explore the latest developments in OrcaSlicer with our nightly builds. Feedback on these versions is highly appreciated.
Belt Printer Builds
The nightly release ships two parallel builds: the standard build and a belt-printer build. Both are attached to the same release — tell them apart by the filename suffix:
- Standard — no suffix (e.g.
OrcaSlicer_Windows_Installer_x64_nightly.exe) - Belt —
_beltsuffix (e.g.OrcaSlicer_Windows_Installer_x64_nightly_belt.exe)
The _belt builds add experimental support for belt / conveyor (infinite-Z) printers, where the model is sliced against a tilted belt surface instead of a flat horizontal bed. They include ready-to-use belt printer profiles, the full belt slicing pipeline (mesh rotation and G-code transforms), belt-aware support generation, and a tilted-bed preview.
⚠️ Belt printer support is under active development and is not yet merged into
main— it currently ships only in these parallel_beltbuilds, produced from thebelt-printerbranch. See tracking PR #14394 and the original documentation in #12998.
How to install
Windows
Download the Windows Installer exe for your preferred version from the releases page. Both x64 and arm64 installers are published — pick the one matching your CPU.
-
For convenience there is also a portable build available.
Troubleshooting
- If you have troubles to run the build, you might need to install following runtimes:
- MicrosoftEdgeWebView2RuntimeInstallerX64
- vcredist2019_x64
- Alternative Download Link Hosted by Microsoft
- This file may already be available on your computer if you've installed visual studio. Check the following location:
%VCINSTALLDIR%Redist\MSVC\v142
Microsoft Store
Install from the Microsoft Store when you prefer a Store-signed package (helps on Windows 11 Smart App Control).
Windows Package Manager
winget install --id=SoftFever.OrcaSlicer -e
Mac
-
Download the universal DMG, which runs on both Apple Silicon and Intel Macs.
-
Drag OrcaSlicer.app to Application folder.
-
If you want to run a build from a PR, you also need to follow the instructions below:
Quarantine
-
Option 1 (You only need to do this once. After that the app can be opened normally.):
- Step 1: Hold cmd and right click the app, from the context menu choose Open.
- Step 2: A warning window will pop up, click Open
-
Option 2: Execute this command in terminal:
xattr -dr com.apple.quarantine /Applications/OrcaSlicer.app -
Option 3:

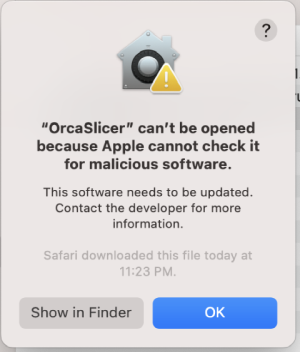

- Step 1: open the app, a warning window will pop up
- Step 2: in
System Settings->Privacy & Security, clickOpen Anyway:
- Step 1: open the app, a warning window will pop up
-
Homebrew Cask
brew install --cask orcaslicer
The Homebrew cask installs the official macOS DMG from GitHub Releases.
Linux
Flathub (Recommended)
OrcaSlicer is available through FlatHub:
Install from the command line:
flatpak install flathub com.orcaslicer.OrcaSlicer
flatpak run com.orcaslicer.OrcaSlicer
It can also be installed through graphical software managers (KDE Discover, GNOME Software, etc.) when Flathub is enabled. Search for OrcaSlicer in your software center.
AppImage
AppImages are published for both x86_64 and aarch64 (ARM64). Pick the file matching your CPU — the ARM64 build has aarch64 in its name (e.g. OrcaSlicer_Linux_AppImage_Ubuntu2404_aarch64_*.AppImage).
-
Download App image from the releases page.
-
Double click the downloaded file to run it.
-
If you run into trouble executing it, try this command in the terminal:
chmod +x /path_to_appimage/OrcaSlicer_Linux.AppImage
How to Compile
All updated build instructions for Windows, macOS, and Linux are now available on the official OrcaSlicer Wiki - How to build page.
Please refer to the wiki to ensure you're following the latest and most accurate steps for your platform.
Klipper Note
If you're running Klipper, it's recommended to add the following configuration to your printer.cfg file.
# Enable object exclusion
[exclude_object]
# Enable arcs support
[gcode_arcs]
resolution: 0.1
Supports
OrcaSlicer is an open-source project, and we're deeply grateful to all our sponsors and backers.
Their generous support helps fund filaments and other essential 3D printing materials for the project.
Thank you! :)
Sponsors
|
|
Backers:
Ko-fi supporters ☕: Backers list
Support the project
Some Background
Open-source slicing has always been built on a tradition of collaboration and attribution. Slic3r, created by Alessandro Ranellucci and the RepRap community, laid the foundation. PrusaSlicer by Prusa Research built on Slic3r and acknowledged that heritage. Bambu Studio in turn forked from PrusaSlicer, and SuperSlicer by @supermerill extended PrusaSlicer with community-driven enhancements. Each project carried the work of its predecessors forward, crediting those who came before.
OrcaSlicer began in that same spirit, drawing from BambuStudio, PrusaSlicer, and ideas inspired by CuraSlicer and SuperSlicer. But it has since grown far beyond its origins. Through relentless innovation — introducing advanced calibration tools, precise wall and seam control, tree supports, adaptive slicing, and hundreds of other features — OrcaSlicer has become the most widely used and actively developed open-source slicer in the 3D printing community. Many of its innovations have been adopted by other slicers, making it a driving force for the entire industry.
The OrcaSlicer logo was designed by community member Justin Levine.
License
- OrcaSlicer is licensed under the GNU Affero General Public License, version 3.
- The GNU Affero General Public License, version 3 ensures that if you use any part of this software in any way (even behind a web server), your software must be released under the same license.
- OrcaSlicer includes a pressure advance calibration pattern test adapted from Andrew Ellis' generator, which is licensed under GNU General Public License, version 3. Ellis' generator is itself adapted from a generator developed by Sineos for Marlin, which is licensed under GNU General Public License, version 3.
- The Bambu networking plugin is based on non-free libraries from BambuLab. It is optional to the OrcaSlicer and provides extended functionalities for Bambulab printer users.
